AZ23C39-7-F

Part Number : AZ23C39-7-F

Manufacturer : Zetex Semiconductors (Diodes Inc.)

Description : AZ23C39-7-F datasheet pdf and Diodes - Zener - Arrays product details from Zetex Semiconductors (Diodes Inc.) stock available at Tanssion

Lifecycle : New from this manufacturer

Datasheet : AZ23C39-7-F.pdf

Delivery : DHL、UPS、FedEx、Registered Mail

Payment : T/T Paypal Visa MoneyGram Western Union

More Information : AZ23C39-7-F More Information

ECAD : Request Free CAD Models

Pricing(USD) : $0.41

Remark : Manufacturer: Zetex Semiconductors (Diodes Inc.). Tanssion is one of the Distributors. Wide range of applications.

Mount : Surface Mount

Height : 1 mm

Weight : 7.994566 mg

Packaging : Tape & Reel (TR)

Schedule B : 8541100050

Power Rating : 300 mW

Zener Current : 100 nA

Number of Pins : 3

Voltage Tolerance : 5 %

Voltage Rating (DC) : 39 V

Element Configuration : Common Anode

Max Operating Temperature : 150 °C

Products Category : Discrete Semiconductor - Diodes - Zener - Arrays

Qty : 5893 In Stock

Applications : Gaming Pro audio, video & signage Advanced driver assistance systems (ADAS)

Width : 2.4 mm

Length : 2.9 mm

Impedance : 90 Ω

Tolerance : 5 %

Case/Package : SOT-23-3

Test Current : 5 mA

Zener Voltage : 39 V

Power Dissipation : 300 mW

Number of Contacts : 3

Peak Reverse Current : 100 nA

Max Power Dissipation : 300 mW

Min Operating Temperature : -65 °C

Contact Now

AZ23C39-7-F Overview\\\\nAZ23C39-7-F is a model belonging to the Diodes - Zener - Arrays subcategory under Discrete Semiconductor. For specific product performance parameters, please refer to the data sheet, such as PDF files Docx documents, etc. We have AZ23C39-7-F high-definition pictures and data sheets for reference. We will continue to produce various video files and 3D models for users to understand our product more intuitively and comprehensively. AZ23C39-7-F is widely used in Gaming,Pro audio, video & signage,Advanced driver assistance systems (ADAS). It is manufactured by Zetex Semiconductors (Diodes Inc.) and distributed by Fans, Tanssion and other distributors. AZ23C39-7-F can be purchased in many ways. You can place an order directly on this website, or you can call or email us. At present, We have sufficient supplies. In addition our own stock, we can also adjust the inventory to the peer distributors to meet your needs. If the supply of AZ23C39-7-F is insufficient, we also have other models under the Discrete Semiconductor Diodes - Zener - Arrays category to replace it. Fans provides a 1-year warranty to customers who have purchased this part to ensure that our customers have a wonderful purchasing experience and are willing to establish a long-term relationship with Fans. So you can order AZ23C39-7-F from Fans with confidence. About delivery, we can deliver goods to our customers through a variety of logistics, such as DHL, FedEx, UPS, TNT and EMS or any other freight forwarder. If you want to know more about the freight, feel free to contact us for more details.
az23c2v7-az23c51.pdf

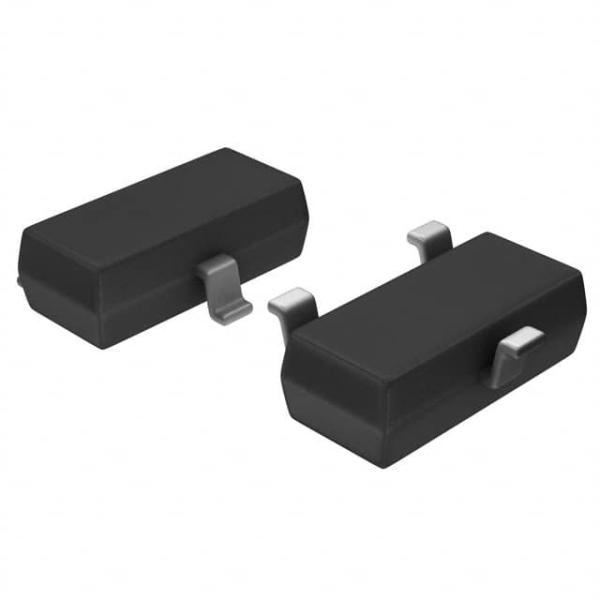

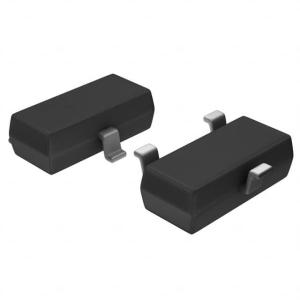

AZ23C39-7-F Images
